PLGT-600N Full Auto Rotary Filter Paper Pleating Machine 35 M/Min

  • 1
  • 2

Brand Name : PLM

Model Number : PLGT-600N

Place of Origin : China

MOQ : 1set

Price : 17500

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 set per month

Delivery Time : 20

Packaging Details : wooden case

Operating Temperature : Up to 300 °C

Speed : 0–35 m/min

Total Line Power : 12 kW

Working Air Pressure : 0.6 MPa

Power Supply : 380 V / 50 Hz

M/C Weight : 750 kg

M/C Size (L × W × H) : 5200 × 1190 × 1170 mm

Product Name PLGT-600N Speed 0–35 m/min Min. Paper Width 50 mm Max. Paper Width 600 mm Min. Pleat He : 70 mm

Contact Now

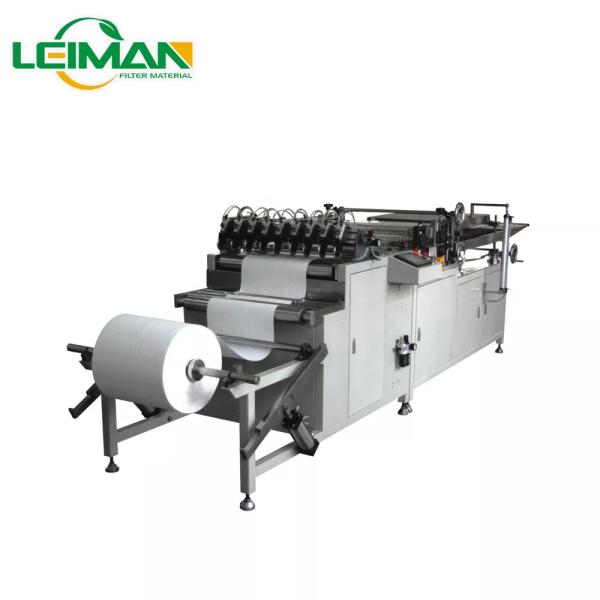

PLGT-600N Full-Auto Rotary Filter Paper Pleating Machine

PLGT-600N Newest Full-auto rotary filter paper pleating production line

1. Consists

Auto paper de-coiler
Paper Pre-slitting machine
Pre-heating device before pleating
Auto counter
Water steam device
The specification of the drum can be changed arbitrarily
Roller and gear collecting device
Pleated paper heat forming and conveyor device

2. Specification

Product capability 0~35m/min
Max.width 600mm
Min.width 50mm
Max.pleat height 70mm
Min.pleat height 10mm
Customize the rollers sizes
Temp.control: normal temp ~300oC
Main power 12kw
Working air pressure 0.6MPa
Power supply 380V/50Hz
M/C weight 750kg
M/C dimension 5200×1190×1170mm(L×W×H)

Components
  • Auto paper de-coiler
  • Paper Pre-slitting machine
  • Pre-heating device before pleating
  • Auto counter
  • Water steam device
  • The specification of the drum can be changed arbitrarily
  • Roller and gear collecting device
  • Pleated paper heat forming and conveyor device
Features
  • The pre-slitter uses pneumatic cutting round knife, which is adjusted simply and pressed evenly.
  • This machine equips the pre-heating and water steam device, to prevent the paper breaking when roller marking.
  • This machine equips the gear collecting system, so to faster the pleating speed and well pleated the paper.
  • This high automatic machine has the process of the auto count marking, pleating, pre-heating and forming.
  • This machine is computer control and simple operation.
Applications

This machine is used for pleating and forming the HDAF filter element.
