Full-auto 55 fold height 1500 wide knife Paper Pleating machine
Full-Auto55 Fold height 1500 wide Knife Paper Pleating Machine Applications
The production line is applied to auto tri-filter industry, hydraulic Heating Power 7.5 kW pressure, purification and water treatment industries, etc.
Full-Auto 55 Fold height 1500 wide Knife Paper Pleating Machine features
1 The pre-slitting machine can accurately and freely adjust the cutting dimensions through frequency converter speed regulation and cylinder blades in different filter sizes. it is simple operated but smooth and effective. After slitting the paper the conveyor lfor feeding the filter paper runs in synchronism with the marking imachine by equipping the monitoring system.
2 The marking machine can mark in different pleat sizes, the marking distance can be set freely by the computer screen, and accurately marking distance can be set freely by the computer screen, and accurately marking distance will be appeared with the step motor loading.
3 The pleater uses upper and lower blades to alternately finish the folding, and then different pleating heights are acquired evenly and accurately by automatically adjusting the blades distance.
4 After marking, the filter paper will be pleated and pre-heated.
5 The machine is also suitable for folding the iron wire fabric and non-woven fabric of the hydraulic filter , even the multilaye folding.
Full-Auto Fold height 1500 wide Knife Paper Pleating Machine specifiction
| Product Name55-1500-II Pre-Slitting Conveyor 1. Speed:0.5–12 m/min (adjustable) 2. Min. Paper Width:32 mm 3. Max. Paper Width:1100 mm 4. Motor Power:0.75 kW 5. Working Air Pressure:0.6 MPa 6. Power Supply:220/50 V/Hz 7. M/C Weight:350 kg 8. M/C Size (L × W × H):1500 × 1300 × 1100 mm |
| Product Name55-1500-II Marker 1. Max. Marking Width :1500 mm 2. Adjustable Marking :8–55 mm
3. Power Supply:380/50 V/Hz 4. Motor Power:1.1 kW 5. M/C Size (L × W × H):1550 × 750 × 1100 mm |
| Product Name55-1500-II Pleating Machine 1. Pleating Speed:0–110 pleats/min 2. Max. Paper Width:1500 mm 3. Adjustable Pleating: 8–55 mm 4. Power Supply:380/50 V/Hz 5. Motor Power:5 kW 6. Heating Power:7.5 kW 7. Operating Temperature:Up to 200 °C 8. Working Air Pressure:0.6 MPa 9. M/C Weight:650 kg
10. M/C Size (L × W × H):1670 × 1720 × 1240 mm |

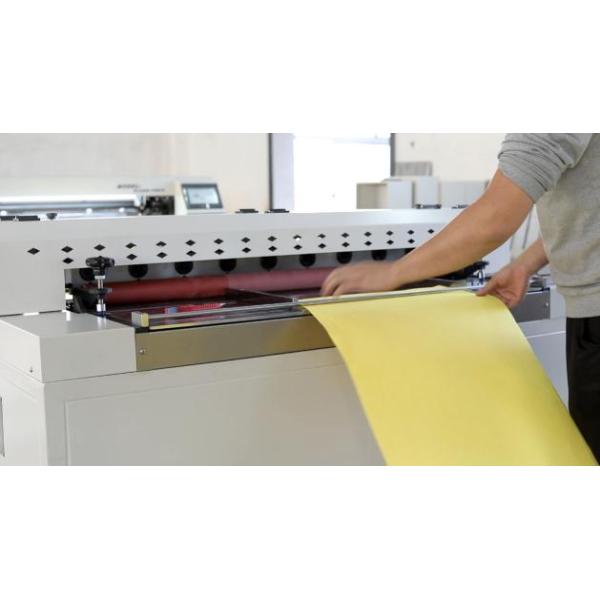

Full-auto 55 fold height 1500 wide knife Paper Pleating machine photo
